Container

LD3 (AKE) / LD6 (ALF) / LD9 (AAP) / M1 (AMA) / LD3-45WF (AKH)

LD3
IATA Code AKE
Rate Class 8
Tare Weight 58-100kg(128-220lb)
Max. Gross Weight 1587kg(3498lb)
Internal Volume 4.5m3(159ft3)
Base Size 153.4x156.2cm(60.4x61.5 in)
Suitable For A330, A350
B747, B747F, B777, B777F lower hold
Half-width lower hold container with one angled side.
LD6
IATA Code ALF
Rate Class 6
Tare Weight 159kg(351lb)
Max. Gross Weight 3175kg(7000lb)
Internal Volume 9.1m3(322ft3)
Base Size 153.4x317.5 cm(60.4x125 in)
Suitable For A330, A350
B747, B747F, B777, B777F lower hold
Full-width lower hold container with angled ends.
LD9
IATA Code AAP
Rate Class 5
Tare Weight 205kg(452lb)
Max. Gross Weight 6033kg(13300lb)
Internal Volume 10.3m3(364ft3)
Base Size 223.5x317.5 cm(88x125 in)
Suitable For A330, A350
B747, B747F, B777,B777F
General-purpose enclosed container fitted to PAG base.
M1
IATA Code AMA
Rate Class 2
Tare Weight 260-265kg(573-584lb)
Max. Gross Weight 6804kg(15000lb)
Internal Volume 17.6m3(623ft3)
Base Size 243.8x317.5 cm(96x125 in)
Suitable For Main Deck of B747F
AMA rectangular container on PMC base
LD3-45WF
IATA Code AKH
Rate Class 8A
Tare Weight 71-77kg(156.5-170lb)
Max. Gross Weight 1134kg(2500lb)
Internal Volume 3.3m3(116ft3)
Base Size 153.4x156.2 cm(60.4x61.5 in)
Suitable For A321 Lower Deck

Active Temperature Control Container

RAP t2 / RKN t2 / RAP e2 / RKN e1

Envirotainer RAP t2 container
IATA Code RAP t2
Cooling source Dry ice slices
Cooling range -20 to +20 °C(-4 to +68 °F)
Power requirement 16 D-size alkaline batteries
Tare Weight 450 kg
Max. Net Weight 5583 kg
Max. Gross Weight(including dry ice) 6033 kg
External Dimensions(L.W.H.) 317x223x162 cm
(125x88x64 in)
Internal Volume 8.22 m3(290.2ft3)
Suitable For A330, A350
B747, B747F, B777, B777F
Provides accurate and reliable protection for large shipments of temperature-sensitive products.
Envirotainer RKN t2 container
IATA Code RKN t2
Cooling source Dry ice slices
Cooling range -20 to +20 °C(-4 to +68 °F)
Power requirement 16 D-size alkaline batteries
Tare Weight 265 kg
Max. Net Weight 1323 kg
Max. Gross Weight(including dry ice) 1588 kg
External Dimensions(L.W.H.) 200x153.5x162 cm
(78.7x60.4x63.8 in)
Internal Volume 2.93 m3(103.4ft3)
Suitable For A330, A350
B747, B747F, B777, B777F lower hold
Provides accurate and reliable protection for medium-size shipments of temperature-sensitive products.
Envirotainer RAP e2 container
IATA Code RAP e2
Cooling source Internal Compressors
Temperature range 0 to +25 °C(+32 to +77 °F)
Power requirement Internal rechargeable batteries
Tare Weight 1100 kg
Max. Gross Weight 6033 kg
External Dimensions(L.W.H.) 317.5x223.5x162.6 cm
(125x88x64 in)
Internal Volume 6.38 m3(224.2ft3)
Suitable For A330, A350
B747, B747F, B777, B777F
Electric heating and compressor cooling  air cargo ULD
Envirotainer RKN e1 container
IATA Code RKN e1
Cooling source Internal Compressors
Cooling range 0 to +20 °C(+32 to +68 °F)
Power requirement Internal rechargeable batteries
Tare Weight 635 kg
Max. Gross Weight 1588 kg
External Dimensions(L.W.H.) 200x153x162 cm
(78.7x60.4x63.8 in)
Internal Volume 2.3 m3(81.90ft3)
Suitable For A330, A350
B747, B747F, B777, B777F lower hold
Electric heating and compressor cooling  air cargo ULD

Pallet

PEB / PLB / PAG / PMC / PRA / PGA / PKC

PEB
IATA Code P5P,PEB
Rate Class 9
Tare Weight 44kg(97lb)
Max. Gross Weight 1136kg(2500lb)
Base Size 223.5x134.6cm(88x53in)
Suitable For Main Deck of B747F
PEB pallet with net
PLB
IATA Code PLB,PLA
Rate Class 6
Tare Weight 68kg(150lb)
Max. Gross Weight 3175kg(7000lb)
Base Size 153.4x317.5cm(60.4x125in)
Suitable For A330, A350
B747, B747F, B777, B777F lower hold
PLB/PLA pallet with net.
PAG
IATA Code PAP,PAG,PAJ
Rate Class 5
Tare Weight 93-98kg(205-216lb)
Max. Gross Weight 6804kg(15000lb)
Base Size 223.5x317.5cm(88x125in)
Suitable For A330, A350
B747, B747F, B777, B777F
Universal general-purpose flat pallet for lower holds and main decks.
Flat pallet with net.

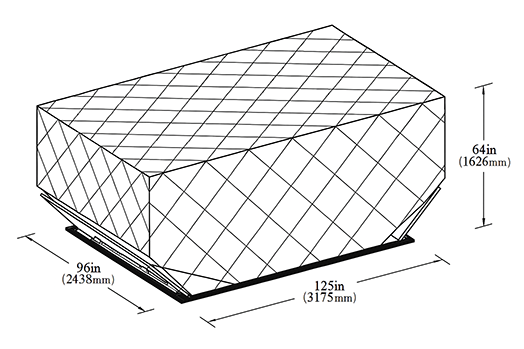

PMC
IATA Code PMC
Rate Class 2
Tare Weight 86-104kg(190-229lb)
Max. Gross Weight 6804kg(15000lb)
Base Size 243.8x317.5cm(96x125in)
Suitable For A330, A350
B747, B747F, B777, B777F
Universal general-purpose flat pallet for lower holds and main decks.
Flat pallet with net.
PRA
IATA Code PRA
Rate Class 1
Tare Weight 418-448kg(921-988lb)
Max. Gross Weight 11340kg(25000lb)
Base Size 243.8x497.8cm(96x196in)
Suitable For B747F, B777F main deck
Main-deck pallet with net
PGA
IATA Code PGA,PGF
Rate Class 1
Tare Weight 505-545kg(1113-1201lb)
Max. Gross Weight 11340kg(25000lb)
Base Size 243.8x605.8cm(96x238.5in)
Suitable For B747F, B777F main deck
Main-deck pallet with net
PKC
IATA Code PKC
Rate Class 8A
Tare Weight 40kg(88lb)
Max. Gross Weight 1588kg(3500lb)
Base Size 153.4x156.2cm(60.4x61.5in)
Suitable For A321 Lower Deck
PKC pallet with net
